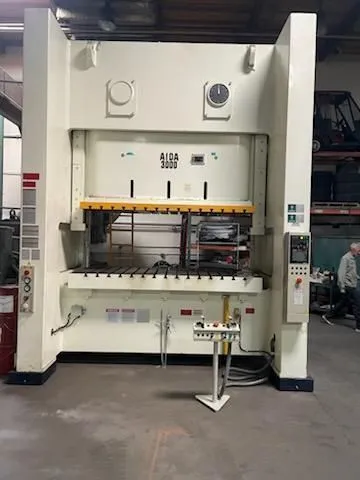

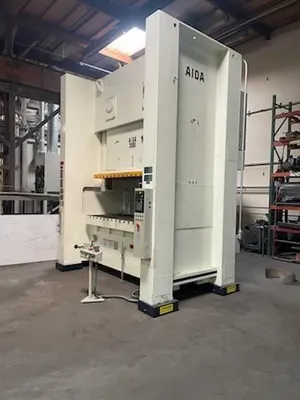

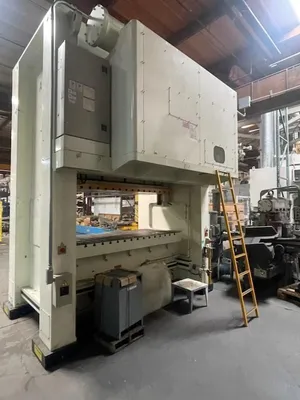

330 Ton Aida NS2-3000 Straight Side Double Crank Press - New 2020

330 Ton Aida NS2-3000 Straight Side Double Crank Press - New 2020

Sell Your AIDA NS2 - 3000(2)
847-640-8600
Sales@kemplermachinery.com
ConditionUsed
1 available
Sell Your AIDA NS2 - 3000(2)

Overview

Type:
Straight Side Double Crank Press
Manufacturer:
AIDA
Model:
NS2 - 3000(2)
Year:
2020
Status:
For Sale

Description

330 Ton Aida NS2-3000, 11.81" stroke, 25.59" SH, 102.4 x 47.2″ bed, 15-35 SPM, New 2020

Tonnage330 T299.371 t
Stroke11.81"299.97 mm
Shut Height25.59"649.99 mm
Bed (L-R)102.4"2,601 mm
Bed (F-B)47.2"1,198.9 mm
SPM Min15 strokes/min.15 strokes/min.
SPM Max35 strokes/min.35 strokes/min.
SPM35 strokes/min.35 strokes/min.
Vari Speed (Yes/No)YesYes
Crank (Single/Double)DoubleDouble
Air Clutch (Yes/No)YesYes
Dimensions137.8" x 117.2"137.8" x 117.2"
Weight99,210 lbs.99,210 lbs.

Capacity 330 tons
Rated Tonnage Point: Above BDC 0.236″
Slide Adjustment: 5.12″
Slide Area (L–R × F–B): 94.5 x 35.4″
Bolster Area (L–R × F–B): 102.4 x 47.2″
Side Opening (F–B × H) 48.0 x 22.8″
Bolster Thickness: 7.87″
Foot to Top of Bolster (no mounts): 45.3″
Max Upper Die Weight @ 73 psi 5,070 lb
Overall Height (no mounts) 175.6″
Main Motor Power 50 HP
Electrical Supply: AC 460V, 60 Hz
Control Voltage: DC 24V, AC 100V
Required Air Pressure: 73 psi

All specifications must be confirmed by buyer

Specifications are accurate to the best of our knowledge, subject to verification.
