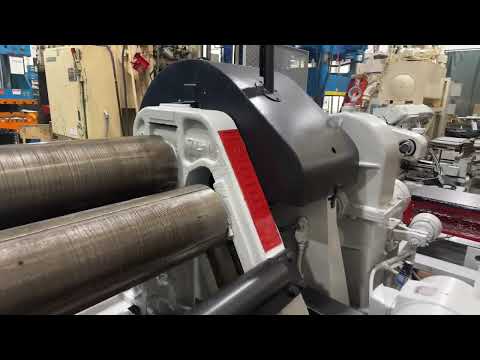

Used 10 Ft. X 3/8" Webb #7L-1010 Plate Roll
ConditionUsed
1 available
10' X 3/8" Webb #7L-1010, 10" roll dia., air drop end, pwr rear & bottom roll adj., #29512
USED 10 FT. X 3/8" WEBB #7L-1010 PLATE ROLL
Model no. 7L-1010
Capacity: 10' x 3/8" mild steel
Roll diameter: 10"
Roll length: 10'2"
Pass line: 38"
Speeds approx.: 8-16 FPM
Weight approx. 18,500 lbs.
Overall dimensions approx. 241" L-R x 75" F-B x 71" H
Serial no. 6955
Stock no. 29512
FOB ELK GROVE VILLAGE, IL
Air drop end with automatic balance bar
Power rear roll adjustment with mechanical indicator
Power bottom roll adjustment with position indicator
Drum switch for forward – reverse - off
Longitudinal & circular grooves in rear & bottom rolls
Full length emergency stop treadle front & back
7.5 HP 1110 RPM 230/460/3/60 rear roll adjustment motor
2 HP 1730 RPM 230/460/3/60 bottom roll adjustment motor
10 HP 1140 RPM 220/440/3/60 main motor
