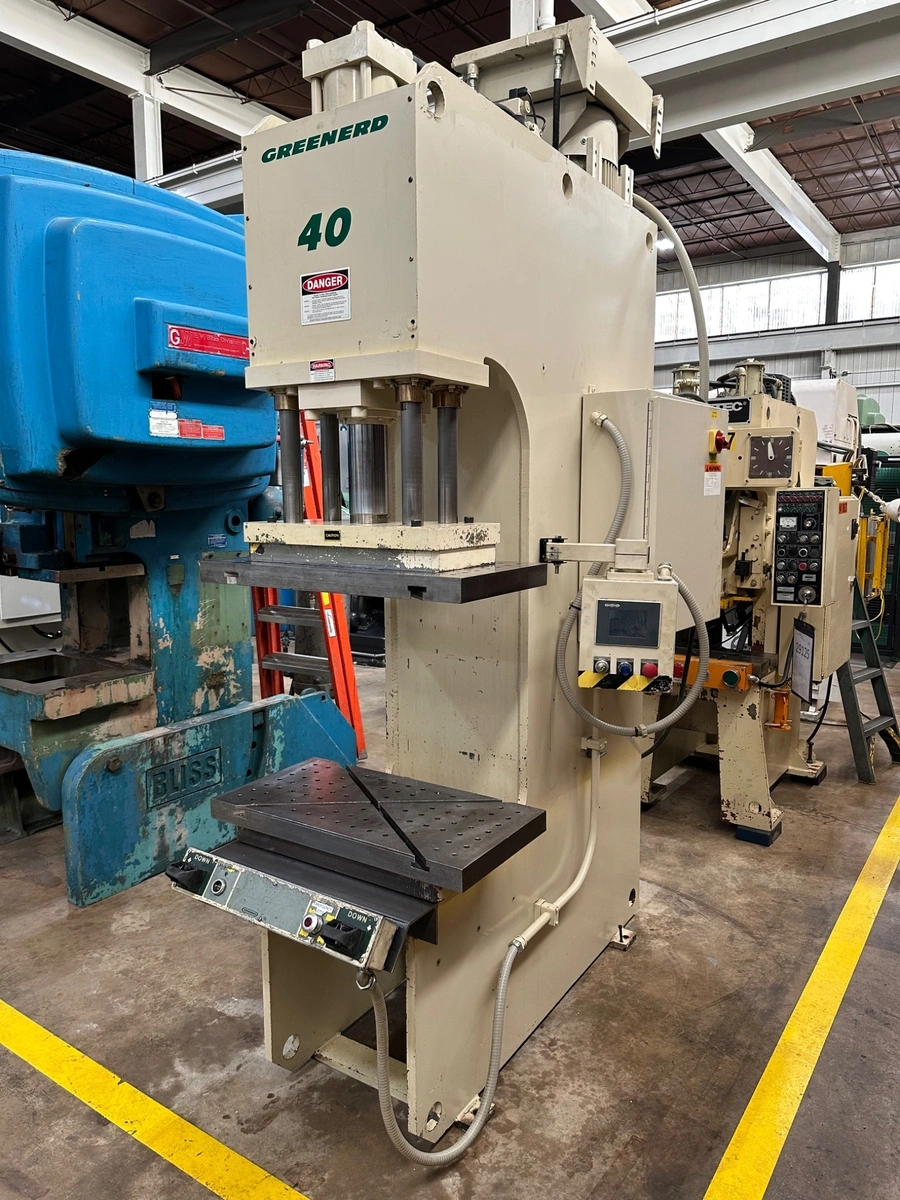

Used 40 Ton Greenerd #HCA-40-30R8 Hydraulic C Frame Press

USED 40 TON GREENERD #HCA-40-30R8 HYDRAULIC C FRAME PRESS
With 4 post guided slide
New 2002
Model HCA-40-30R8
Floor standing
Bed area: 26" L-R x 15" F-B
Bed bolster: 32" L-R x 16" F-B x 2" thick (T-slotted)
4 post guided slide: 24" L-R x 12" F-B
Slide bolster: 32" L-R x 16" F-B x 2" thick (T-slotted)
Stroke: 0-24" maximum
Daylight opening (total): 36" maximum
Throat depth: 15"
Ram diameter: 6"/4" @ 2830 PSI - 40 tons
Floor to top of bed: 31"
Power unit: Submerged hydraulic pump, driven by
20 HP 1180 RPM 230/460/3/60 motor
Speeds approx.: 698"/minute closing
65"/minute pressing to 40 tons
558"/minute return
Weight approx. 7,900 lbs.
Overall dimensions approx. 40" L-R x 78" F-B x 120" H
Serial no. 02T6178
Stock no. 29493
FOB ELK GROVE VILLAGE, IL
