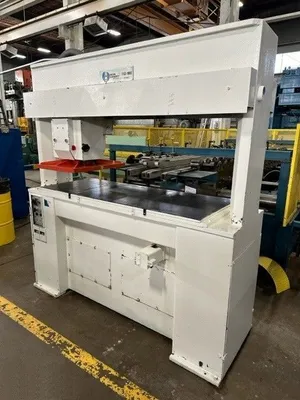

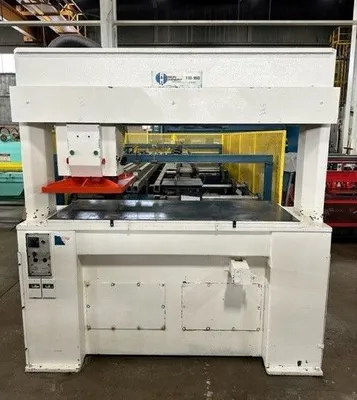

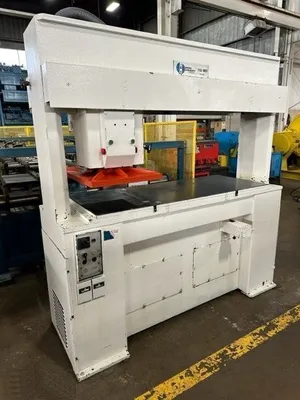

Used 25 Ton Hudson Travel Head Die Cutting Press

USED 25 TON HUDSON TRAVEL HEAD DIE CUTTING PRESS
Model F63/MHS
Hydraulic, floor standing
Distance between side housings: 69" L-R
Table area: 66" L-R x 25" F-B
Cutting head area: 20" L-R x 25" F-B
Stroke: 5.75" maximum
Daylight opening (total): 7.75" maximum
Floor to top of bed: 40"
Power unit: main motor: Hydraulic pump, driven by 3 HP motor
trolley motor: 1/2 HP motor
Controls: Pushbutton operation with stroke &
pressure control
Dual operator pushbuttons
Weight approx. 5,000 lbs.
Overall dimensions approx. 80" L-R x 28" F-B x 88" H
Serial no. 75V109171
Stock no. 29133
FOB ELK GROVE VILLAGE, IL
