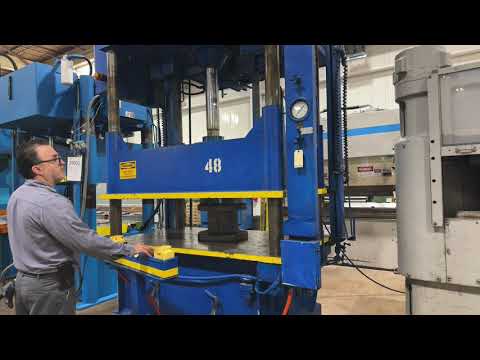

Used 75 Ton Dake #18-558 Hydraulic Press

USED 75 TON DAKE #18-558 HYDRAULIC PRESS
Model 18-558
4 post downstroke type; floor standing
Distance between 4" diameter posts: 60" L-R x 30" F-B
Area of bed (nominal): 60" L-R x 42" F-B
Overall dimensions of bed: 72" L-R x 42" F-B
Area of slide (nominal): 60" L-R x 42" F-B
Overall dimensions of slide: 72" L-R x 42" F-B
Stroke of fully guided slide: 0 - 23" maximum
Daylight opening (total): 36" maximum
Main ram diameter: 6"/4.75" @ 5300 PSI - 75 tons
Floor to top of bed: 36"
Power unit (top rear of press): (2) hydraulic pumps, both driven by
15 HP 1755 RPM 230/460/3/60 motor
Speeds approx.: 150"/minute closing
30"/minute pressing to 75 tons
400"/minute return
Weight approx. 15,000 lbs.
Overall dimensions approx. 100" L-R x 82" F-B x 151" H
Serial no. 178704
Stock no. 29400
FOB ELK GROVE VILLAGE, IL
