| Max Thickness | 3/8" | 9.525 mm |
| Length of Rolls | 4' | 1.2 m |
| (Init/Dbl Pinch or Pyramid) | DBL PINCH | DBL PINCH |
| Roll Diameter | 7" | 177.8 mm |
| # Rolls | 4 | 4 |
| Hyd/Mech | Hyd | Hyd |
| Dimensions | 121" L-R x 76" F-B x 63" H | 121" L-R x 76" F-B x 63" H |
| Weight | 8,500 lbs. | 8,500 lbs. |
USED 4 FT. X 3/8" BERTSCH #4R37-04 HYDRAULIC FOUR ROLL BENDING ROLL
New 2006
Model no. 4R37-04
With Bertsch CNC control
Capacity: 4' x 3/8" mild steel
Roll diameter: 7" top roll
8" pinch roll
7" side rolls
Roll length: 50"
Speeds approx.: 14 FPM
Pass line: 42"
Weight approx. 8,500 lbs.
Overall dimensions approx. 121" L-R x 76" F-B x 63" H
Serial no. M-10983
Stock no. 29258
FOB ELK GROVE VILLAGE, IL

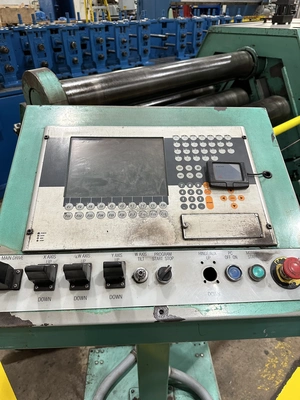

Free standing Bertsch CNC control
Hydraulic drop end
Hydraulic adjustment of pinch roll & side rolls
Electronic levelling system for parallelism of both side rolls for individual tilt control
Automatic self-locking hinge actuated by hydraulic cylinder
Emergency stop cable front & back
Hydraulic pump, driven by
10 HP 1760 RPM 208/220/460/3/60 motor
