Used 15" X 18" Wells Horizontal Twin Post Band Saw
$5,950.00 USD
ConditionUsed
1 available
15" x 18" Wells #14, 15" rounds, automatic shuttle bar feed, #29217

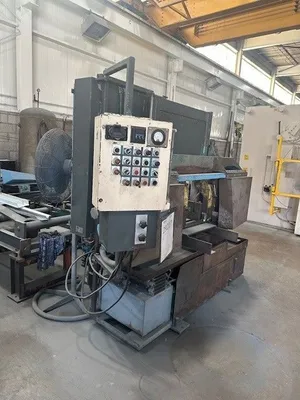

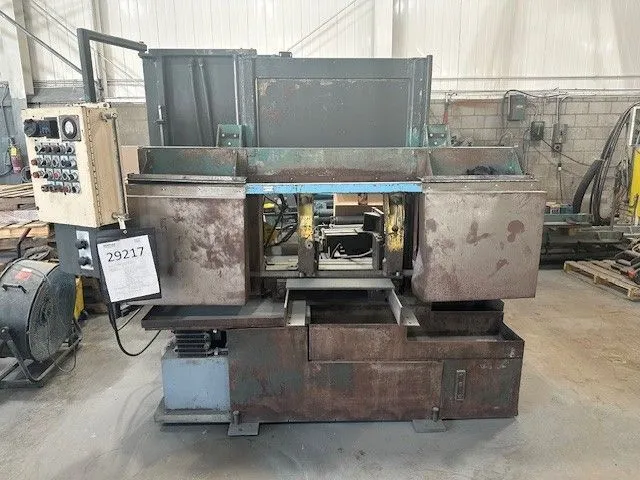

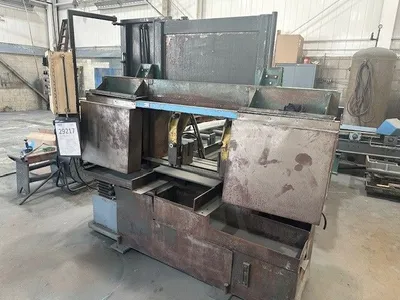

15" X 18" WELLS HORIZONTAL TWIN POST BAND SAW
Model no. 14 with automatic shuttle type bar feed
Capacities: 15" x 18" mild steel
15" round
Wheel diameter: 20"
Blade size: 15'4" long x 1-1/4" wide
Blade speeds approx.: 0 - 460 FPM
Weight approx. 7000 lbs. (total)
Overall dimensions approx. 99" L-R x 54" F-B x 82" H (saw)
43" L-R x 85" F-B x 40" H (shuttle)
28" L-R x 120" F-B x 30" H (roller table)
25" L-R x 117" F-B x 31" H (roller table)
Serial no. 1521
Stock no. 29217
FOB ELK GROVE VILLAGE, IL

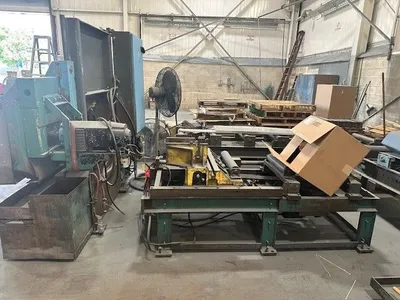

Automatic shuttle type bar feed with 24" stroke & 7000 lb. load capacity
Machine mounted control with selector switches for blade tension on-off;
bed vise open-close; shuttle vise open-close; blade speed slow-fast; hand-auto
Pushbuttons for start-stop; forward-reverse; raise-lower
8" high hydraulic bed vise
8" high hydraulic shuttle vise
Automatic hydraulic blade tension control
Coolant pump & pan
(2) 10' long roller tables
5 HP 1745 RPM 230/460/3/60 motor
Approx. 1-1/2 frame lift motor
Approx. 1 HP hydraulic pump motor
