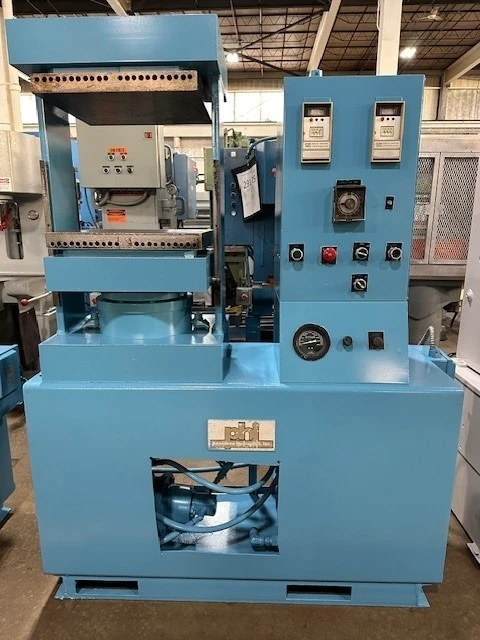

Used 100 Ton PHI Hydraulic Molding Press

USED 100 TON PHI HYDRAULIC MOLDING PRESS
Model 100U1818S-2HHO-D-YS1-G
Slab side upstroke type, floor standing
Distance between slab sides: 20" L-R
Platen area (nominal): 19" L-R x 18" F-B
Stroke of guided platen: 0 - 10" maximum
Daylight opening (total): 21" maximum
Main ram diameter (1): 9" @ 3150 PSI - 100 tons
Floor to top of moving platen: 48"
Power unit (base of press): Hydraulic pump, driven by
3 HP 1760 RPM 230/460/3/60 motor
Speeds approx.: 42"/minute closing
4"/minute pressing to 100 tons
Gravity return
Weight approx. 3,600 lbs.
Overall dimensions approx. 60" L-R x 30" F-B x 75" H
Serial no. 84-5-006
Stock no. 29231
FOB ELK GROVE VILLAGE, IL
