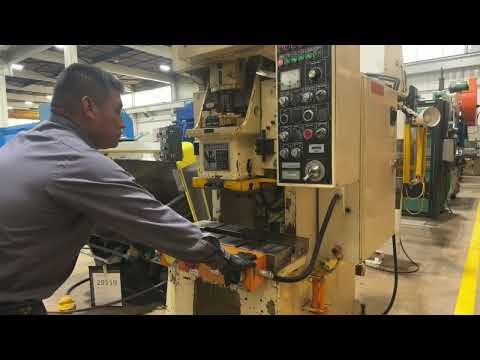

Used 25 Ton Stamtec #G1-25N O.B.I. Punch Press

USED 25 TON STAMTEC O.B.I. PUNCH PRESS
Model no. G1-25N
Air clutch & brake; air counterbalances; flywheel type
Stroke: 2.36"
Slide adjustment: 1.97"
Shut height S.D.A.U.: 7.87" to top of bed
Area of bed: 26.77" L-R x 11.81" F-B
Bolster thickness: 3" (T-slotted)
Area of slide: 11.81" L-R x 8.66" F-B
Shank hole diameter: 1.5"
Throat depth: 6.5"
Opening through back: 16"
Floor to top of bed: 29"
S.P.M. approx.: 60 - 140
EQUIPPED WITH: Dual palm buttons for run with emergency &
top stop buttons
Pushbuttons for start - stop
Key selector switch for inch - off - single -
continuous; motor forward - reverse
Rotary cam limit switches
One shot oil lubrication
Crank position indicator
Knockout slot in slide
5 HP 1740 RPM 230/460/3/60 variable speed
drive motor
Weight approx. 5000 lbs.
Overall dimensions approx. 45" L-R x 60" F-B x 94" H
Serial no. S70558
Stock no. 29125
FOB ELK GROVE VILLAGE, IL
