Used 500 Ton TMP Heated Platen Laminating Press

USED 500 TON TMP HEATED PLATEN LAMINATING PRESS
Hydraulic
4 post upstroke type
2 opening
Floor standing
Distance between 7" dia. posts: 74" L-R x 11.5" F-B
Platen area (nominal): 73" L-R x 31" F-B
Stroke of guided platen: 0 - 6" maximum
Daylight opening (total): 18" maximum
Daylight opening between
hot plates(2): 3" maximum each
Hot plates(3): 72" L-R x 30" F-B x 2" thick
(electrically heated to 600°F -
water cooled)
Main ram diameter(3): 14" @ 2200 PSI - 500 tons
Floor to top of moving platen: 55"

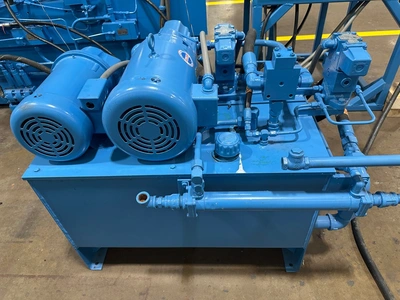

Power unit (free standing): Dowty hydraulic pump, driven by
7.5 HP 1725 RPM 230/460/3/60 motor
Dowty hydraulic pump, driven by
3 HP 1725 RPM 230/460/3/60 motor
Controls: Pushbutton operation with stroke & pressure control
Dual palm buttons
Selector switch for manual or semi-automatic operation
Cycle timers - preheat, cure, air, water
(4) digital temperature indicator controllers
Low & high pressure gauges
Weight approx. 43,500 lb. - press
1,000 lb. - panel
1,000 lb. - power unit
Overall dimensions approx. 106" L-R x 50" F-B x 101" H - press
42" L-R x 44" F-B x 90" H - panel
52" L-R x 40" F-B x 40" H - power unit
Serial no. 3761
Stock no. 28968
FOB ELK GROVE VILLAGE, IL
