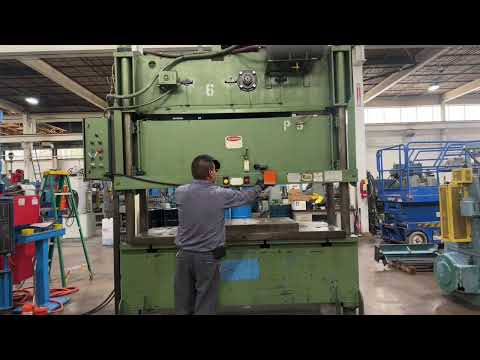

Used 100 Ton Heim S100 Straight Side Double Crank Press

USED 100 TON HEIM STRAIGHT SIDE DOUBLE CRANK PRESS
Model no. S100-30X80
Air clutch & brake
Back geared type
Stroke: 6"
Slide adjustment: 4" (powered)
Shut height S.D.A.U.: 18"
Area of bed: 80" L-R x 30" F-B
Area of slide: 78" L-R x 20" F-B (U-slotted)
Distance between housings: 82"
Bolster thickness: 3"
Windows: 15" F-B
Floor to top of bed: 34"
S.P.M. approx.: 30
EQUIPPED WITH: Dual palm buttons for run front & back
Emergency & top stop buttons
Pushbuttons for start - stop
Key selector switch for inch - off -
single stroke
Rotary cam limit switches
Power ram adjustment with position
indicator
Automatic oil lubrication
Air surge tank
10 HP 1745 RPM 230/460/3/60 motor
Weight approx. 15,000 lb.
Overall dimensions approx. 108" L-R x 50" F-B x 128" H
Serial no. 1636
Stock no. 28950
FOB ELK GROVE VILLAGE, IL
