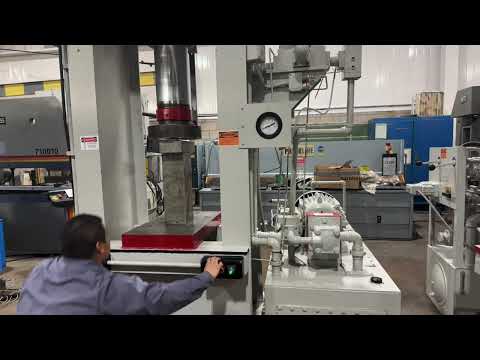

Used 300 Ton Dake #23-140 Hydraulic H-Frame Press

USED 300 TON DAKE #23-140 HYDRAULIC H-FRAME PRESS
Floor standing
Distance between side frames: 30" L-R
Distance between bed channels: 30" L-R x 16.5" F-B
Distance over bed channels: 32" F-B
Area of bed: 18" L-R x 30" F-B
Stroke of ram: 0 - 16" maximum
Daylight opening: 42" maximum (38" maximum over plate)
Main ram diameter: 11.5"/9" @ 5776 PSI - 300 tons
Power unit: Vickers hydraulic pump &
Dynex hydraulic pump, both driven by
25 HP 1800 RPM 220/440/3/60 motor
Speeds approx.: 115"/minute closing
8"/minute pressing to 300 tons
265"/minute return
Controls: Pushbutton operation with stroke &
pressure control
Dual palm buttons
Pressure gauge
Weight approx. 8500 lbs. - press
1000 lbs. - power unit
Overall dimensions approx. 80" L-R x 36" F-B x 135" H - press
72" L-R x 32" F-B x 42" H - power unit
Serial no. 145694
Stock no. 28613
FOB ELK GROVE VILLAGE, IL
