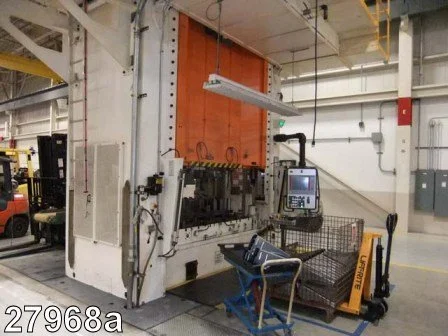

Used 220 Ton Schuler Hydraulic Press

USED 220 TON SCHULER HYDRAULIC PRESS
Mfd. 2002
Model no. HPDZb200
Bed Size: 94.5" x 55.1" T-Slotted
Ram Face: 94.5" x 56" T-Slotted
Ram Stroke: 23.6"
Open Height: 43" Over 9-1/2" Th. T-Slotted Bolster
Ram Speed Variable: 108 to 945 IPM
Bed Cushion: 69.4 Tons with 12" Stroke
Ejector in Ram: 3.3 Tons with 7.99" Stroke
Windows: 40" Wide
Max. Weight of Upper Die: 6,725 Lbs.
Max. Offset Ram Load Left-Right: 147,520 Ft. Lbs.
Max. Offset Ram Load Front-Back: 73,750 Ft. Lbs.
Ram has Double Prismatic Guiding
Hydraulic System Operating Pressure: 3,626 PSI
Main Oil Tank Capacity: 633.5 Gallons
Auxiliary Oil Tank Capacity: 43.5 Gallons
Allen Bradley Panel View PLC Control
Operator Pedestal with Dual Palm Buttons
T-Slotted Bolster Plate: 94-1/2" x 55" x 9-1/2"
150 HP Main Hydraulic Pump Motor, 3, Phase, 60 Cycle, 460 Volts
Full Set of Manuals

DIMENSIONS:
Approx. Overall Machine Assembled: 238" L x 187" W x 23' H Above Floor
The Cushion Goes 44" Below the Floor
Hydraulic System: 12' L x 5' W x 104" H
Electric Cabinet: 11' L x 2' W x 90" H
Overall Press Laying Down for Shipping: 26' L x 153" W x 91" H
Approx. Press Weight: 92,000 Lbs.
Approx. Hydraulic System Weight: 11,000 Lbs.

Serial no. H/7641
Stock no. 27968
FOB PENNSYLVANIA SHIPPING POINT
