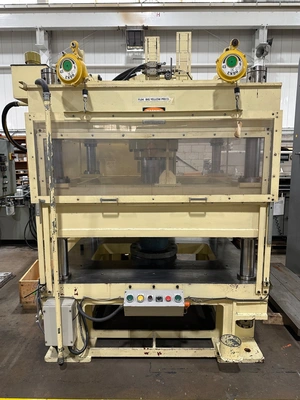

USED 65 TON U-TEC TOKAI KIKAI HYDRAULIC PRESS

USED 65 TON U-TEC TOKAI KIKAI HYDRAULIC PRESS
Model TUF-4F65-250
4-post
Down-acting type
Floor standing
Distance between 4" dia. posts: 51.5" L-R x 41.5" F-B
Area of bed (nominal): 50" L-R x 55" F-B
with (2) 13.5" L-R x 19" F-B holes
Overall dimensions of bed: 65" L-R x 55" F-B
Area of slide (nominal): 50" L-R x 55" F-B
Overall dimensions of slide: 65" L-R x 55" F-B
Stroke of fully guided slide approx.: 0-10" maximum
Daylight opening (total) approx.: 23" maximum
Floor to top of bed: 25"
Power unit (free standing): Hydraulic pump driven by
20 HP 1155 RPM 230/460/3/60 motor
Controls: Pushbutton operation with stroke &
pressure control
Dual palm buttons
Pressure gauge
Weight approx. 16,000 lbs. - press
2,400 lbs. - power unit
Overall dimensions approx. 96" L-R x 75" F-B x 96" H - press
70" L-R x 48" F-B x 78" H - power unit
Serial no. TK09-026-1
Stock no. 27507
FOB ELK GROVE VILLAGE, IL
