| Number of Stands | 14 | 14 |
| Diameter of Arbor | 1-1/8" | 28.575 mm |
| Horiz Centers | 6" | 152.4 mm |
| Vert Centers | 3.5" | 88.9 mm |
| Capacity 2nd Dim. | 22 Gauge Capacity | 22 Gauge Capacity |

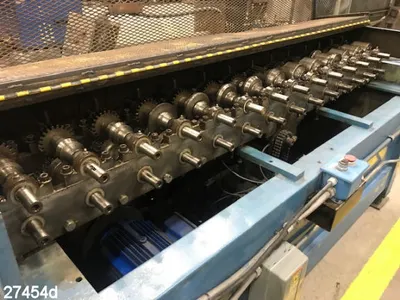

USED 22 GA. STANDING "S" LOCKFORMER CLEAT FORMER
"S" cleat machine
Duct connector
Capacity: 22 gauge
Number of stands: 14
Shaft diameter: 1-1/8"
Horizontal center distance: 6"
Vertical center distance: 3-1/2"
Speeds approx.: 70 FPM
Distance floor to base: 33"
EQUIPPED WITH: Selector switch for manual - auto
Emergency stop button
Screw type vertical adjustment
Stock edge guide
Chain driven
10 HP 1725 RPM 230/460/3/60 motor
Weight approx. 2500 lbs.
Overall dimensions approx. 115" L-R x 45" F-B x 46" H
Serial no. SC1104
Stock no. 27454
FOB ELK GROVE VILLAGE, IL
2HWLFX
