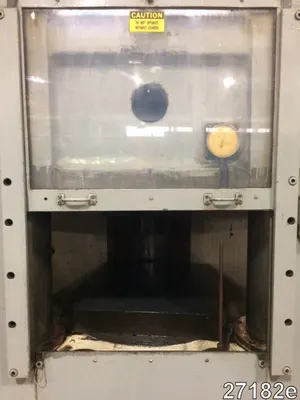

865 Ton Elmes, 3-Post, upstroke, 9" str., 24" dia. platen, 20" DL, #27182
USED 1000 TON ELMES HYDRAULIC HOBBING PRESS
Upstroke type
Floor standing
Distance between 9" dia. posts: 25" L-R
Platen area (nominal): 24" diameter
Stroke of fully guided platen: Approx. 0 - 9" maximum
Daylight opening (total): 20" maximum
Main ram diameter (1): 21" @ 5000 PSI - 865 tons
Floor to top of moving platen: 43"
Power unit (free standing): (2) hydraulic pumps, both driven by
5 HP 1150 RPM 220/440/3/60 motor
Controls: Pushbutton operation with stroke &
pressure control
Operator controller
Pressure gauge
Weight approx. 21,100 lb. total
Overall dimensions approx. 60" L-R x 60" F-B x 98" H - press
36" L-R x 52" F-B x 36" H - power unit
Serial no. N/A
Stock no. 27182
FOB ELK GROVE VILLAGE, IL
